Liteflow 在 SpringBoot 启动时无法注入组件问题 couldn‘t find chain with the id[THEN(NodeComponent)]

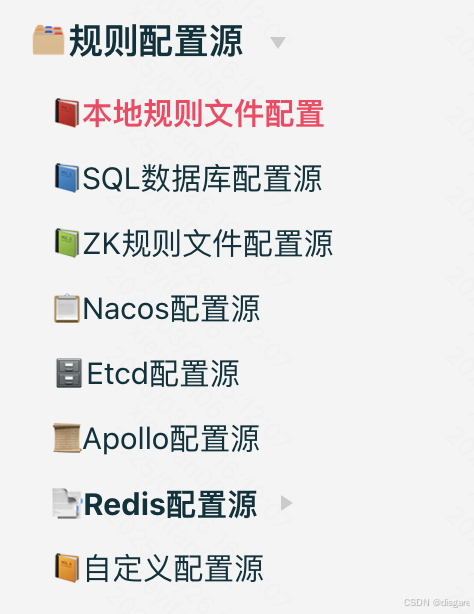

Liteflow 的配置源读取有很多方式,但是这些方式可能不能满足我们的业务需要
有时候我们会将配置放在公司提供的动态配置中,每次读取配置时,会调用 LiteFlowChainELBuilder 方法动态构建规则,如下:
public static final Conf<Map<String, Map<Integer, String>>> LITEFLOW_ENGINE_CONFIG =
Confs.ofMapMap("ad.adIndustryNvwa.liteflowConfig", emptyMap(), String.class, Integer.class, String.class)
.change(current -> current.forEach((executionKey, executionMap) -> executionMap.forEach((key, value)
-> LiteFlowChainELBuilder.createChain().setChainId(executionKey + key).setEL(value).build())))
.build();
1
2
3
4
5
2
3
4
5
这么处理可能会有问题,就是用户在第一次调用 execute2Future 时,配置有可能没有加载进来,因此需要在 spring 启动的时候,调用 LiteFlowChainELBuilder 构建一次 Chain
@PostConstruct
public void tryInit() {
LITEFLOW_ENGINE_CONFIG.get().forEach((executionKey, executionMap) -> executionMap.forEach((key, value)
-> LiteFlowChainELBuilder.createChain().setChainId(executionKey + key).setEL(value).build()));
}
1
2
3
4
5
2
3
4
5
此时可能会出现 couldn't find chain with the id[THEN(NodeComponent)] 问题
问题处理思路:了解到 NodeComponent 已经设置了 LiteflowComponent 注解,可能是初始化代码执行时,NodeComponent 还不在 spring 容器中,考虑采用 Order 的方式进行排序

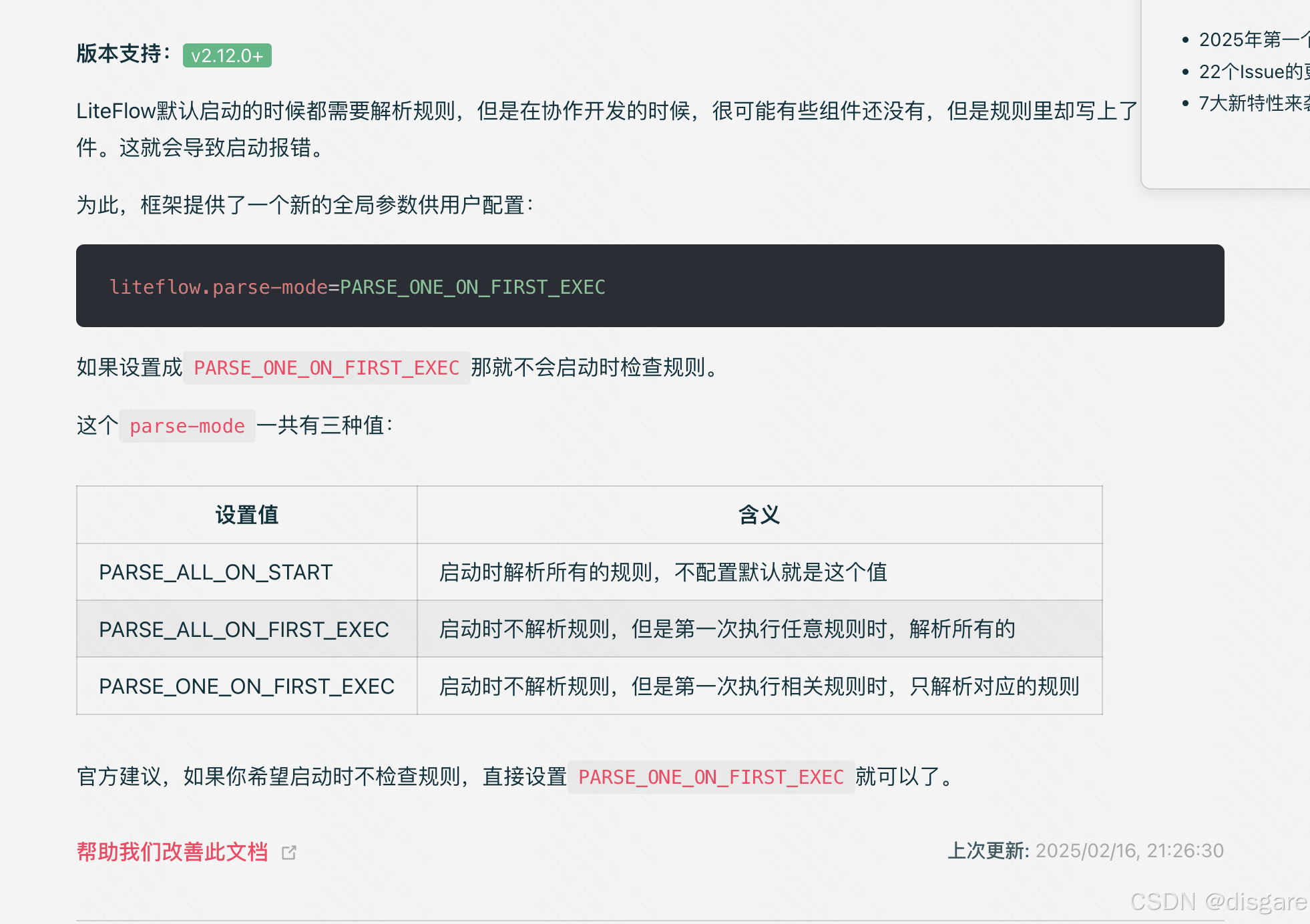

加上后还是失败了,此时确认 node 已经在 spring 容器中,考虑到在容器中但是不在 Liteflow 的组件中的情况,翻阅文档,发现可以设置启动时不检查规则

最后修改如下:
@Resource
private LiteflowConfig liteflowConfig;
@PostConstruct
public void tryInit() {
liteflowConfig.setParseMode(PARSE_ONE_ON_FIRST_EXEC);
LITEFLOW_ENGINE_CONFIG.get().forEach((executionKey, executionMap) -> executionMap.forEach((key, value)
-> LiteFlowChainELBuilder.createChain().setChainId(executionKey + key).setEL(value).build()));
}
1
2
3
4
5
6
7
8
9
2
3
4
5
6
7
8
9
